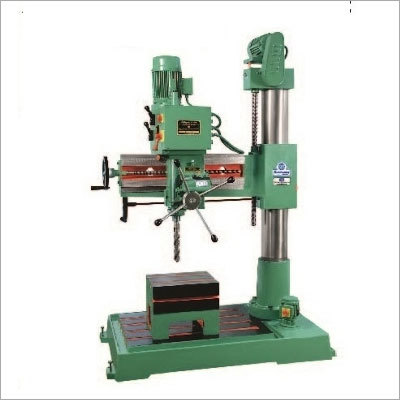

      40Mm Cap Fine Feed Radial Drilling Machine

      40Mm Cap Fine Feed Radial Drilling Machine
      40Mm Cap Fine Feed Radial Drilling Machine
      Product Code : SMTR-III G A/F
      Brand Name : SIDDHAPURA
      Price And Quantity
      • Minimum Order Quantity
      • 1
      • Unit of Measure
      • Unit/Units
      Product Description

      40MM CAP FINE FEED RADIAL DRILLING MACHINE

      Specification SMTR-III G/A

      Drilling Capacity   - 38mm to 40mm

      DRILL HEAD

      1.Spindle Nose - MT-4

      2.Spindle Travel - 220

      3.No of Spindle - 8

      4.Range of Spindle Speed(RPM) - 90 to 1000RPM

      5.Range of Power Feed - (2) 0.20-0.10

      POWER

      1.Main Motor (1.5 HP )  - 1400KW/RPM 1.55/2800 KW/RPM

      2.Arm Elevating Motor (0.5 HP) - A-23 V-Belt

      WORKING TABLE

      L x W x H  - 380 x 300 x 300

      WORKING RANGE

      1.Drilling Radius Max./Min. - 895/440

      2.Max./Min.Dist.Column to Spindle - 850/275

      3. Max.Drill Head Drive - 450

      4.Max./Min. Base Plate to Spindle -930/230

      5.Diameter of Column -168

      BASE PLATE

      L x W x H -760 x 1250 x 150

      Working  Surface -820 x 610

      No. of T-Slot  -4

      DIMENSION

      Overall Height 2000

      Wooden Case(L x W x H) -1250 x 1550 x 2000



      Trade Information
      • Payment Terms
      • Cash Against Delivery (CAD), Cash in Advance (CID), Cheque
      • Packaging Details
      • GUNNY PACKING OR WOODEN CASE
      • Main Export Market(s)
      • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
