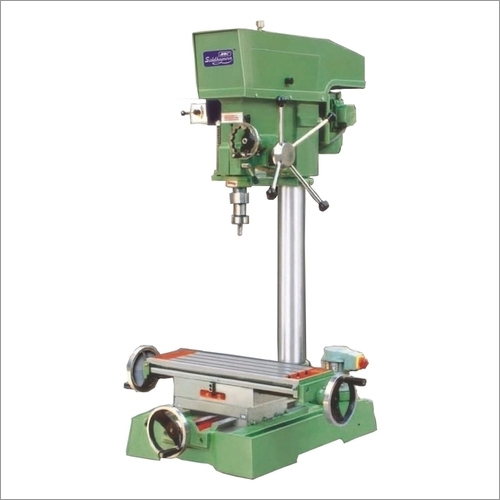

      Vertical Drilling Cum Milling Machine

      Vertical Drilling Cum Milling Machine
      Vertical Drilling Cum Milling Machine
      Product Code : SSC-6DMU
      Brand Name : SIDDHAPURA
      Product Description



      Vertical Drilling Cum Milling Machine

      Technical Specifications:

      In : Drilling 40mm
      Cast : Face Mill 100mm
      Iron : End Mill 25mm
              :Tapping 22mm
      In Mild steel drilling 35mm
      Column Diameter 114mm
      Swing 560mm
      Working Surface 725 x 224mm
      Longitudinal Travel Manual 340mm
      Cross Travel 305mm
      Vertical Travel 830mm
      Quill Travel 170mm
      Spindle Taper MT - 4
      Range Of Spindle Speed 75 to 2070RPM
      No. Of Spindle Speed 8
      Distance Spindle To Base 830mm
      Overall Height With Guard 1780mm
      Main Electrical Motor 1.5HP
      V-belt Section B-62
      Shipping Case (I x W x H) 1170 x 915 x 1570mm
